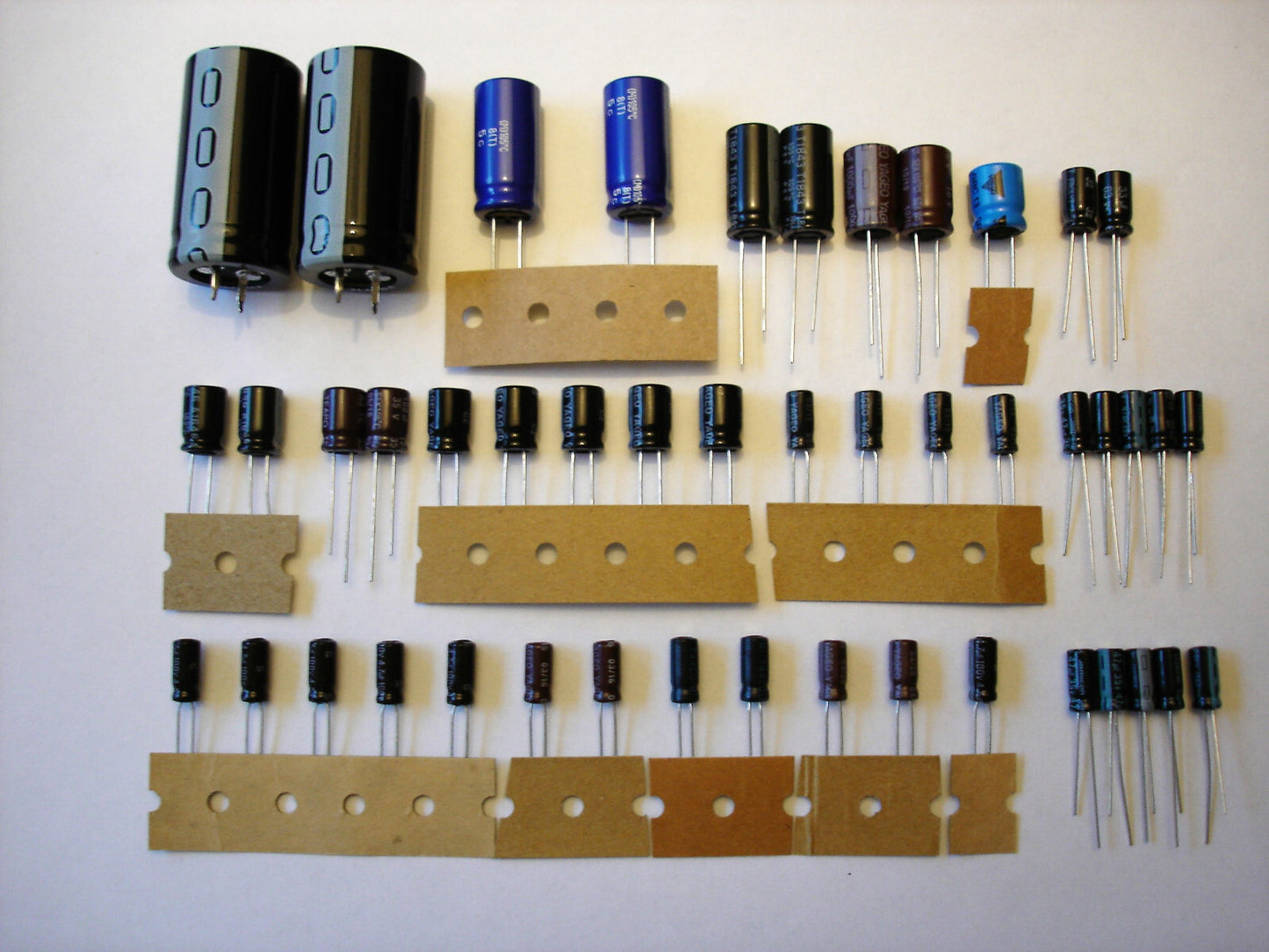

NAD 3020B 3120 Electrolytic Capacitor Set complete QUALITY SELECTABLE recap repair
NAD 3020B 3120 Electrolytic Capacitor Set complete QUALITY SELECTABLE recap repair
Couldn't load pickup availability
Complete set for replacing all electrolytic capacitors of the NAD 3020B and NAD 3120 (not for the first 3020, 3020A, 3020e and 3020i. Please search for the appropriate sets in our shop)
We offer a particularly high-quality complete set, consisting of 47 capacitors in total. Most capacitors are supplied with increased temperature resistance and increased voltage resistance. Both have a positive effect on the lifespan and otherwise have no disadvantages.
This set is available from us in two qualities:
PANASONIC-WIMA
This set includes 38 electrolytic capacitors from Panasonic's
FR-A series and, since there are no values smaller than 4.7µF in this series,
five film capacitors from WIMA's MKS series. These can excellently replace the
small electrolytic capacitors; no polarity needs to be observed as they are film
capacitors. Both series are characterized by extreme longevity and hi-fi
suitability.
Furthermore, there are four high-quality electrolytic capacitors from other
manufacturers, whose values are not available in either series. These
manufacturers may vary over time, but the high quality remains.
STANDARD
This set contains 47 electrolytic capacitors. The quality of the supplied electrolytic capacitors corresponds to the quality of the originally installed ones. Capacitors from various manufacturers are used, which may change. See also the list of eligible manufacturers available for download below.
We offer a 60-day return policy for unused components.Christoph Mistler
An der Kull 51
DE-41844 Wegberg
Email: info@80s-hifi-classics.com
Product documents:
INSTALLATION_INSTRUCTIONS:
DE,EN,ES,FR,IT,NL,PL,PT.pdf
Hazard statements
Hazard statements
Informationen zur Produktsicherheit
- Bitte außerhalb der Reichweite von Kindern aufbewahren!
- Enthält Kleinteile, Erstickungsgefahr!
- Elkos enthalten möglicherweise giftiges Elektrolyt!
Vergiftungsgefahr!
- Polung muss beachtet werden!
- bei ausgestecktem Gerät und Spannungsfrei arbeiten
- Kondensatoren können auch nach längerem Nicht-Betrieb noch
lebensgefährliche Spannungen gespeichert haben!
Information on product safety
- Please keep out of the reach of children!
- Contains small parts, risk of suffocation!
- Electrolytic capacitors may contain toxic electrolyte!
Risk of poisoning!
- Polarity must be observed!
- Work with the device unplugged and de-energized
- Capacitors may still store life-threatening voltages even after a long period of disuse!
Informations sur la sécurité des produits
- Veuillez tenir hors de portée des enfants !
- Contient de petites pièces, risque d'étouffement !
- Les condensateurs électrolytiques peuvent contenir un
électrolyte toxique ! Risque d'intoxication !
- La polarité doit être respectée !
- Travaillez avec l'appareil débranché et hors tension
- Les condensateurs peuvent encore accumuler des tensions
dangereuses même après une longue période de non-utilisation !
Informazioni sulla sicurezza del prodotto
- Tenere fuori dalla portata dei bambini!
- Contiene piccole parti, rischio di soffocamento!
- I condensatori elettrolitici possono contenere elettrolita
tossico! Rischio di avvelenamento!
- È necessario rispettare la polarità!
- Lavorare con il dispositivo scollegato e senza corrente
- I condensatori possono ancora accumulare tensioni pericolose per la vita anche dopo un lungo periodo di inattività!
Informatie over productveiligheid
- Buiten bereik van kinderen houden!
- Bevat kleine onderdelen, verstikkingsgevaar!
- Elektrolytische condensatoren kunnen giftige elektrolyt
bevatten! Vergiftigingsgevaar!
- Polariteit moet in acht worden genomen!
- Werk met het apparaat losgekoppeld en spanningsloos
- Condensatoren kunnen nog steeds levensbedreigende
spanningen opslaan, zelfs na een lange periode van inactiviteit!
Informacje na temat bezpieczeństwa produktu
- Przechowywać w miejscu niedostępnym dla dzieci!
- Zawiera małe części, ryzyko uduszenia!
- Kondensatory elektrolityczne mogą zawierać toksyczny
elektrolit! Ryzyko zatrucia!
- Należy przestrzegać biegunowości!
- Pracuj z urządzeniem odłączonym od zasilania i pozbawionym
zasilania
- Kondensatory mogą nadal gromadzić napięcia zagrażające
życiu nawet po długim okresie nieużywania!
Informações sobre a segurança do produto
- Por favor, mantenha fora do alcance das crianças!
- Contém peças pequenas, risco de asfixia!
- Os condensadores electrolíticos podem conter electrólito
tóxico! Risco de envenenamento!
- A polaridade deve ser observada!
- Trabalhar com o dispositivo desligado e desenergizado
- Os condensadores podem ainda armazenar tensões
potencialmente fatais mesmo após um longo período sem utilização!
Información sobre la seguridad del producto
- ¡Manténgase fuera del alcance de los niños!
- Contiene piezas pequeñas, ¡riesgo de asfixia!
- ¡Los condensadores electrolíticos pueden contener
electrolito tóxico! ¡Riesgo de intoxicación!
- ¡Se debe respetar la polaridad!
- Trabaje con el dispositivo desenchufado y sin corriente-
Los condensadores pueden seguir almacenando voltajes potencialmente mortales
incluso después de un largo período de inactividad.
Assembly Instructions
Assembly Instructions
Installation and Assembly Instructions
This type-specific capacitor kit is intended to replace the
electrolytic capacitors in the respective device, either because the existing
capacitors are defective or because those we offer are superior to the
originally installed ones (upgrade).
1. First, it is advisable to take many photos: of the
wiring, the circuit board, and the capacitors. Since electrolytic capacitors
are mostly polarized (they have a positive and a negative lead or side), it is
helpful to be able to refer to these photos to ensure the correct orientation
when installing the new capacitor (in some cases, you cannot trust the circuit
board markings, if any).
2. Next, assess the situation. Keep in mind that in the vast
majority of cases, the new capacitors have a higher voltage rating 1.
3. Proceed step-by-step: desolder a defective capacitor 2, then solder in a new one.
1 The value of the maximum permissible voltage (V) may match
that of the old capacitor, but it may very well be higher and must NEVER be
lower.
An example:
Your device contains four different types of 47µF capacitors:
47µF/10V, 47µF/25V,
47µF/35V and
47µF/50V.
We would supply you with the following replacement types:
2x 47µF/35V as a replacement for 10V and 25V
2x 47µF/63V as a replacement for 35V and 50V.
Although the original includes a 35V capacitor, a 63V
capacitor is supplied to increase the voltage rating.
2 In individual cases, we recommend desoldering with the help
of desoldering braid and a manual desoldering suction pump. The best option
would be an electronic desoldering station with a heated suction gun, but its
acquisition is usually not worthwhile for smaller projects.
